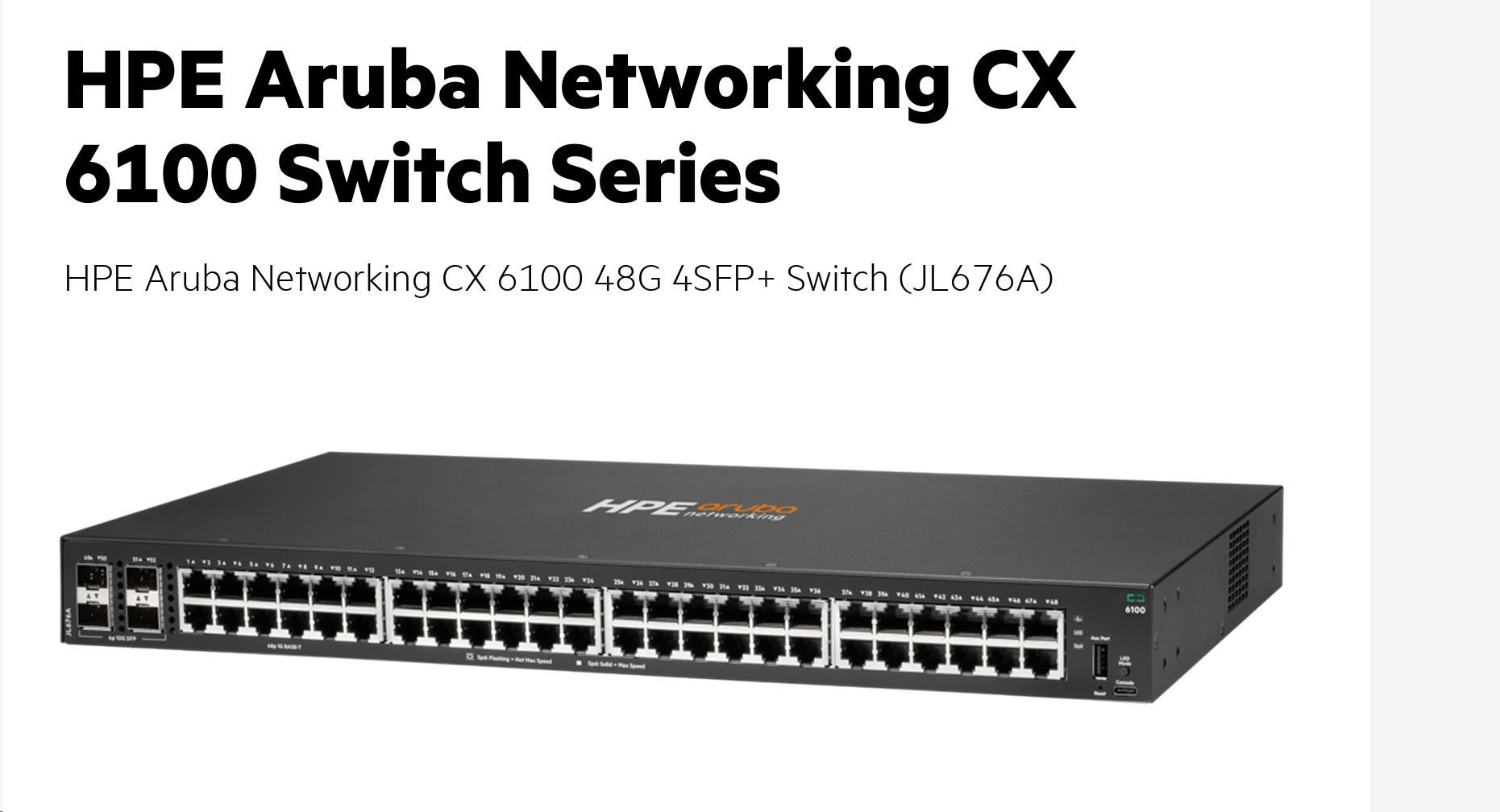

HPE Aruba Networking CX 6100 48G 4SFP+ Switch RENEW JL676AR#ABB
Popis
Parametry
Hlídací pes

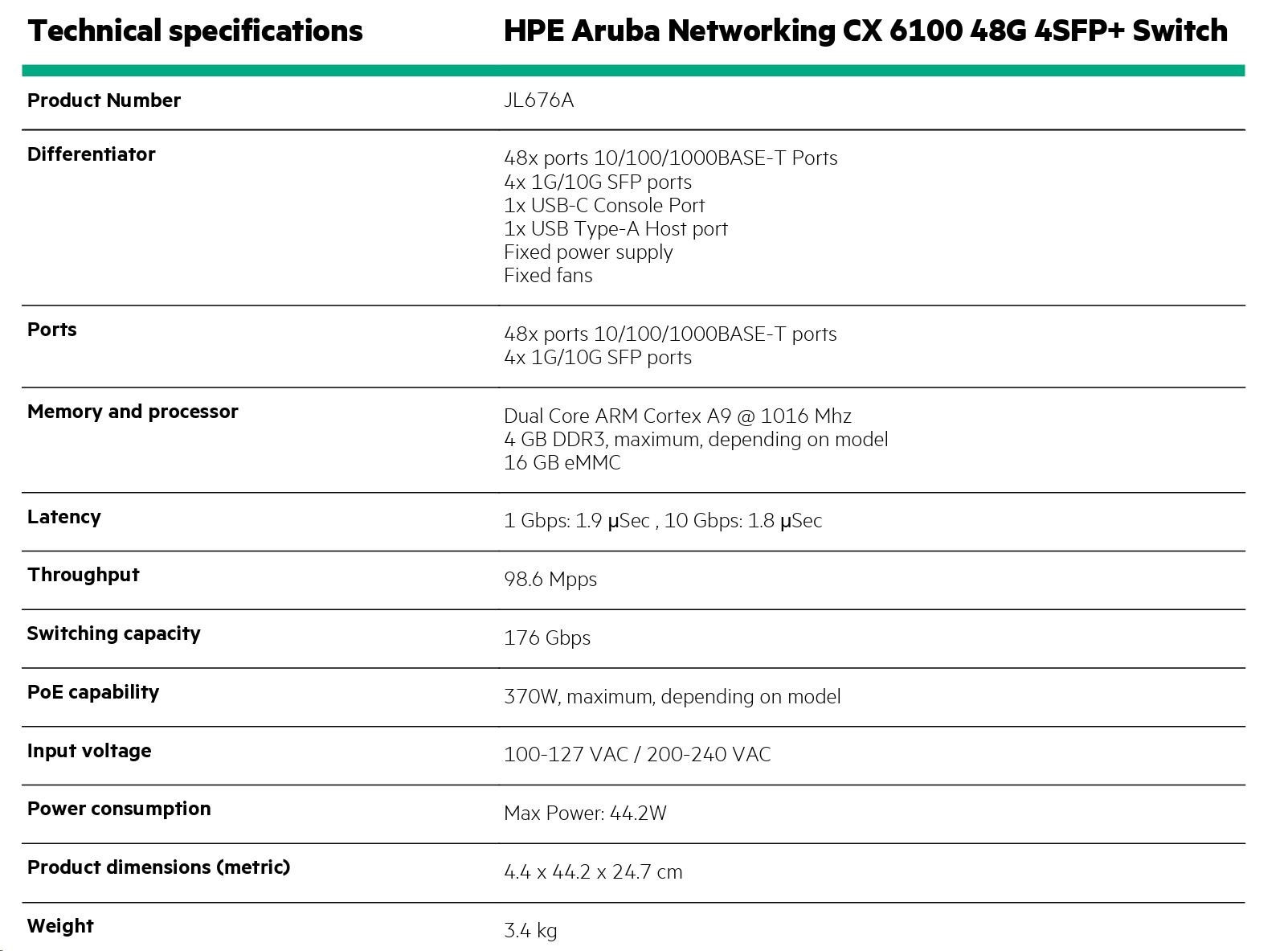

HPE Aruba Networking CX 6100 48G 4SFP+ Switch - Technical Specifications
Technical Specifications: HPE Aruba Networking CX 6100 48G 4SFP+ Switch
| Product Number | JL676A |
|---|---|
| Differentiator | 48x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports 1x USB-C Console Port 1x USB Type-A Host port Fixed power supply Fixed fans |
| Ports | 48x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports |
| Memory and Processor | Dual Core ARM Cortex A9 @ 1016 MHz 4 GB DDR3 (maximum, depending on model) 16 GB eMMC |
| Latency | 1 Gbps: 1.9 µSec 10 Gbps: 1.8 µSec |
| Throughput | 98.6 Mpps |
| Switching Capacity | 176 Gbps |
| PoE Capability | 370W, maximum, depending on model |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Power Consumption | Max Power: 44.2W |
| Product Dimensions (Metric) | 4.4 x 44.2 x 24.7 cm |
| Weight | 3.4 kg |
HPE Aruba Networking CX 6100 Switch Comparison
HPE Aruba CX 6100 Switches Specification Comparison
| Feature | JL676A (48G Non-PoE) |
|---|---|
| Description | 48x 1G Ports, 4x 1G/10G SFP+, USB-C Console, USB-A Host |
| PoE Power | Not Supported |
| Power Supply | Fixed 65W |
| Fans | Fixed |
| Dimensions (HxWxD) | 4.39 x 44.2 x 24.74 cm |
| Weight | 3.42 kg |
| CPU | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory / Flash | 4 GB DDR3 / 16 GB eMMC |
| Packet Buffer | 12.38 MB (4.5MB Ingress / 7.875MB Egress) |
| Switching Capacity | 176 Gbps |
| Throughput | 98.6 Mpps |
| Latency (64-byte) | 1G: 1.9 µs, 10G: 1.8 µs |
| IPv4/IPv6 Hosts | IPv4: 1024, IPv6: 512 |
| Unicast Routes (IPv4 / IPv6) | 512 / 512 |
| MAC Table | 8,192 Entries |
| ACL Entries (IPv4 / IPv6 / MAC) | 256 / 128 / 256 |
| Operating Temp | 0°C to 45°C (Derated above 1.5 km) |
| Power Consumption (230V) | Idle: 20.6W Max: 44.2W |
| Acoustic | 3.6 Bel / 24.6 dB |
| Mounting | Rack, Wall, or Flat Surface Mount (kit included) |
| Certifications & Compliance | IEC/EN/UL/CSA 62368-1, FCC, VCCI, CISPR, EN 55032, etc. |
.
Technologie:
Gigabit ethernet + 10 Gigabit optika
Management:
SNMP/RMON
Provedení:
Rack mounted 19"
Přenosová rychlost LAN (Mb/s):
95
Funkce:
VLAN (virtual local area network)
Funkce:
PoE (Power over ethernet)
Funkce:
L3
Funkce:
QoS (Quality of service)
Počet portů Combo:
0
Ventilátor:
Ano
Počet portů SFP28:
0
Počet portů LAN:
48
Maximální počet portů:
48
Počet portů Combo:
0
Počet SFP+ portů:
4
Počet portů SFP28:
0
Aktuální cena produktu je26598Kč
s dph
